ACME Simulators Database System
Categories:
This project was completed for INSY 661 – Database Systems and Applications (Fall 2025) at McGill University.
Our team designed, built, and tested a relational database for ACME Simulators, focusing on version tracking, approval workflows, and dynamic document assembly.
Project Overview
ACME Simulators develops interactive training systems for automotive and defense clients.
Each simulator project requires a custom-built handbook, assembled from many modular documents such as Engine Diagnostics or Climate Control.
The system we built automates the management of these documents — tracking versions, approvals, change logs, and configuration rules — while ensuring that every released handbook reflects the correct product and platform specifications.
The database supports:
- Full version control and document lineage
- Reviewer approvals and rejection tracking
- Alerts for locked or pending documents
- Project-specific assembly of approved content
- Traceability from edit history to client delivery
Entity Relationship Diagram
The database schema was designed using a comprehensive ERD that defines the core entities and their relationships within the ACME Simulators system.

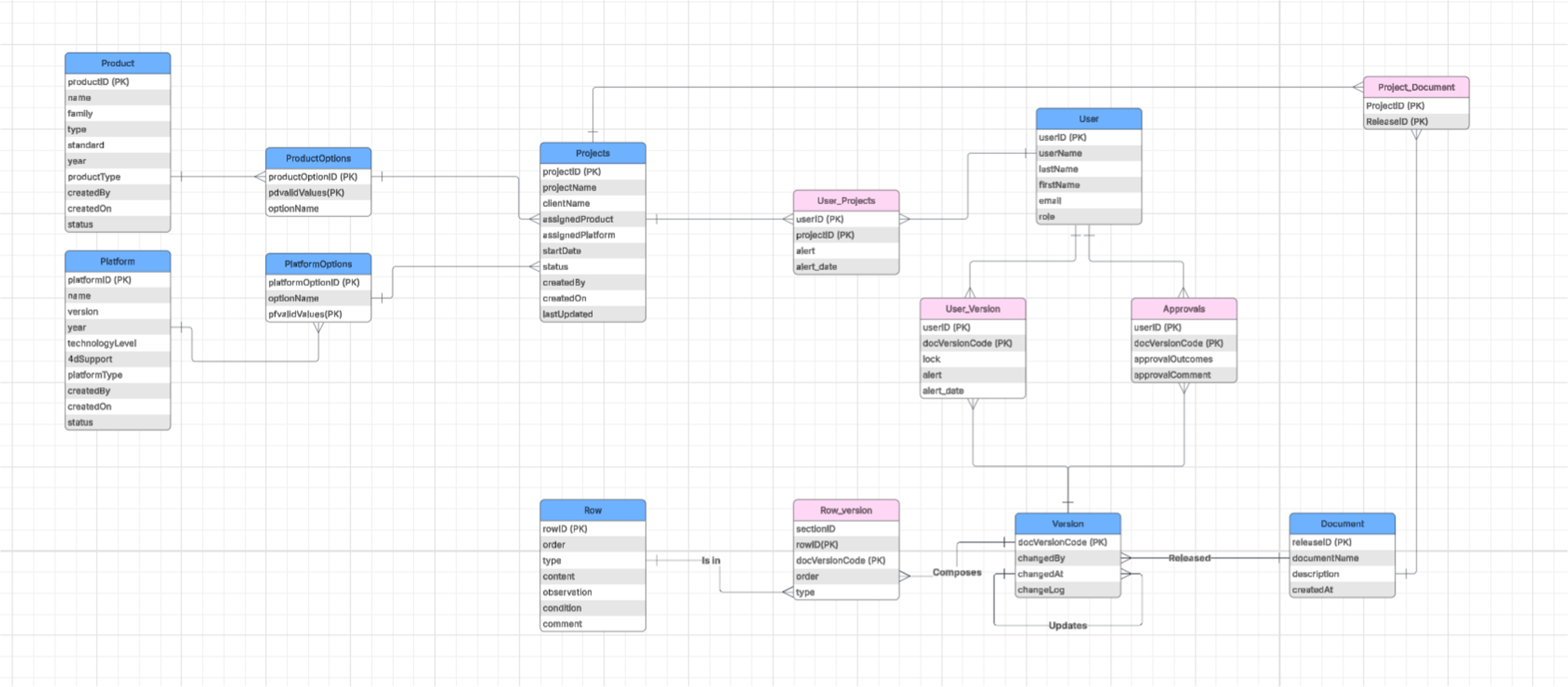

Figure 1: Entity-Relationship Diagram showing the complete database schema for ACME Simulators
Key Entities & Relationships:
- Product & Platform: Many-to-many relationship supporting multi-platform simulators
- Document & Version: One-to-many with full version control and approval tracking
- Project & Document: Many-to-many assembly allowing flexible handbook creation
- User & Approval: Tracks reviewer assignments and approval workflows
- Alert System: Monitors pending approvals and document status changes
The ERD ensures 3NF normalization while maintaining efficient query performance for complex document assembly operations.
Methodology
Data Modeling:
Created an Entity-Relationship Diagram (ERD) defining key entities (Product, Platform, Document, Version, Approval, Project) and associative relationships for many-to-many linkages (e.g., Project_Document, User_Version).Schema Design:
Implemented a 3NF relational schema with referential integrity constraints to prevent version conflicts and ensure data consistency across tables.Queries & Testing:
Wrote over 20 SQL queries to support business logic, including:- Retrieving the latest approved document version per product
- Displaying all rows used in the latest document versions per project
- Tracking pending approvals and document alerts
- Reporting active projects and their associated configurations
Implementation Environment:
Developed and tested using MySQL on db-fiddle.com, with sample datasets for 25+ products, platforms, and 500+ records across linked tables.
Example Queries
| # | Query | Description |
|---|---|---|
| 1 | Latest Approved Documents | Identifies the most recent document version marked as “Approved.” |
| 2 | Documents Requiring Edits | Lists documents whose latest versions are pending or rejected. |
| 3 | Rows by Latest Version | Displays all rows included in each document’s newest version. |
| 4 | Alerts by User | Shows all document/project alerts assigned to users. |
Results
Our database solution achieved the following outcomes:
- End-to-end traceability between document edits, approvals, and project releases
- Efficient assembly of project-specific handbooks without redundant manual compilation
- Improved accuracy by enforcing version control and approval dependencies
- Comprehensive auditability, ensuring every client release can be traced back to approved versions
“One source of truth for every simulator project.”
The ACME database system streamlines how technical content is versioned, approved, and deployed — turning a complex document process into a reliable, automated pipeline.
